With the Great Central Railway-based diesel brake tender nearing completion, Nick Pigott tells the story of a unique new-build project.

MANY types of modern traction-era rolling stock have survived into preservation, but a notable exception is the diesel brake tender.

These extraordinary vehicles were introduced in the early 1960s when British Railways realised that many of its new diesel and electric locomotives were unable to match the braking force of their steam predecessors when hauling heavy unfitted goods trains.

A total of 122 were built and were common sights in the 1960s and 70s, particularly in intensive freight areas such as the East Midlands and the North East.

Article continues below…
Advert

Monthly Subscription: Enjoy more Railway Magazine reading each month with free delivery to you door, and access to over 100 years in the archive, all for just £5.35 per month.
Click here to subscribe & save

Increased use by BR of fully fitted and air-braked trains gradually rendered them redundant and by the early 1980s all had been withdrawn from service. Unfortunately, the entire fleet went for scrap, for with the diesel preservation movement still in its infancy at that time, the saving of locomotives naturally took precedence.

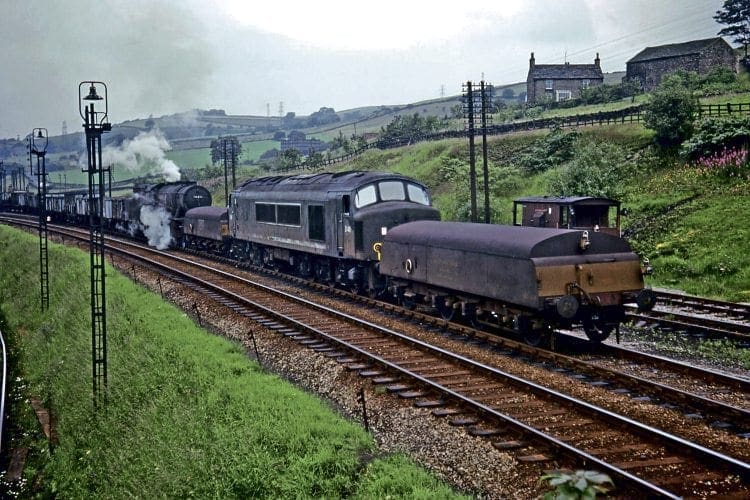

It is more than a third of a century since a diesel brake tender ran in Britain, but even in their heyday, a sight such as this would have been as rare as hen’s teeth. It’s not known whether this combination, seen at Chinley North in the summer of 1965, was formed of ‘Peak’ No. D49 with brake tenders front and rear or whether WD 2-8-0 No. 90491 had itself been coupled to such a vehicle. However, judging by the copious volumes of escaping steam, it is likely that the former scenario was the case and that the Class 45 and its attendant tenders had been sent to assist the ailing ‘Dub-Dee’. W J Naunton

This state of affairs lasted until the start of the present decade when a group of volunteers from Great Central Railway-based Railway Vehicle Preservations Ltd (RVP) – inspired by the many ‘Lazarus’-style new-build loco projects in Britain – decided to resurrect the brake tender design by constructing one from scratch.

“Never go down to the pub with us unless you want to become entwined in some crazy scheme that will cost you money,” laughed RVP’s Brian Hallett as he told me how the project was conceived.

Article continues below…
Advert

“Some of the lads who’d worked on the restoration of our travelling post office vehicle had met up for a few bevvies in Burton-upon-Trent and the conversation got round to ‘ones that got away’. One member of our crew, Phil Stanbridge, recalled seeing brake tenders running through Burton in his youth and a quick search on the Internet soon confirmed that none had survived.

“A few drinks later and a plan had been hatched to build a new one. ‘All’ we needed to do was acquire a carriage underframe, cut out the middle, join the two ends together and construct a new body!

“A few phone calls ensued and before any sense could prevail, we had managed to secure a donor vehicle – a Mk1 coach that had been bought by the GCR for spares and was about to be scrapped, having had its reusable components recovered.”

Article continues below…
Advert
The men who have brought the sight of a diesel brake tender back to the railways of Britain. From left: Paul Harrison, Tony Bennett, Phil Stanbridge, Brian Hallett and Phil Payne. Missing from the line-up are fellow RVP members Tim Pryce, Mick Yates and Tony Thompson. NICK PIGOTT

BR’s original brake tenders had also been created using redundant carriages (mainly
ex-LNER and LMS examples) as donor vehicles, but when the team came to research the history of the fleet, they found an alarming lack of information – technical drawings were scarce, photos of the vehicles under construction appeared to be non-existent and there was very little printed work on the subject. “In fact, by far the most valuable details and illustrations were contained in feature articles published by The Railway Magazine in December 1995 and June 1996,” revealed Brian.

The original vehicles had been numbered B964000 to B964121 and had been built in the early-1960s to four different diagrams by three BR workshops and four outside contractors (see panel).

The diagrams were 1/555, 6, 7 and 8, many utilising Gresley bogies, but as the 21st century brake tender could not be exactly the same as its predecessors, it was decided to allocate an all-new diagram of 1/559 and the running number B964122.

Article continues below…
Advert

By May 2011, a set of dimensions had been located by the National Railway Museum, enabling group member Mick Yates – a draughtsman by trade – to produce a set of computer-aided drawings suitably revised for use with a Mk1 body and BR1 bogies. At RVP’s Rothley base, a start was made on dismantling the donor coach (SK No. 15208).

The body and remaining fittings were removed, the centre section was cut from its 64ft-long underframe and the two end sections were cleaned and painted before being spliced and bolted firmly together to produce a 32ft 2in frame.

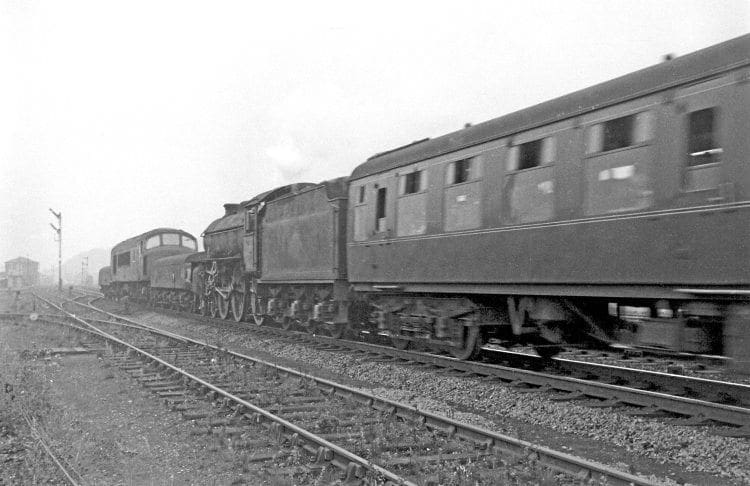

Another example of a steam loco being coupled to a brake tender came in around 1963 when a ‘B1’ class 4-6-0 returning excursion from Yarmouth to Sheffield was assisted by a ‘Peak’ paired with two of the vehicles. It is thought that the ‘B1’ had either failed or run out of coal. This photograph at Chesterfield is also incredibly rare insofar as it depicts brake tenders in use with a passenger train. IAN LANDER

“It was the ultimate ‘cut-and-shut job’, laughed Brian, “but with the emphasis very much on strength and safety.”

The group had chosen the name ‘Project X’ for its scheme as it wanted to keep the plan quiet until the initial hurdles had been overcome, but after a year or so the members felt confident enough to go public.

The date chosen to issue a press release was April 1, 2012, but the decision back-fired somewhat as most people assumed the announcement was an April Fool spoof and didn’t take it seriously.

“It did at least get people talking about us, so in the end it wasn’t such a bad decision after all,” recalled Brian.

It soon became clear that the joke was on the cynics, however, and half a decade of hard work culminated in December 2016 with the final piece of bodywork fitted to the vehicle ahead of an official launch into traffic at the GCR’s September gala this year.

Once the hubbub over the press release had died down, the next job was to lift the modified frame to enable the two bogies to be removed and taken to Swithland yard for
grit-blasting and painting.

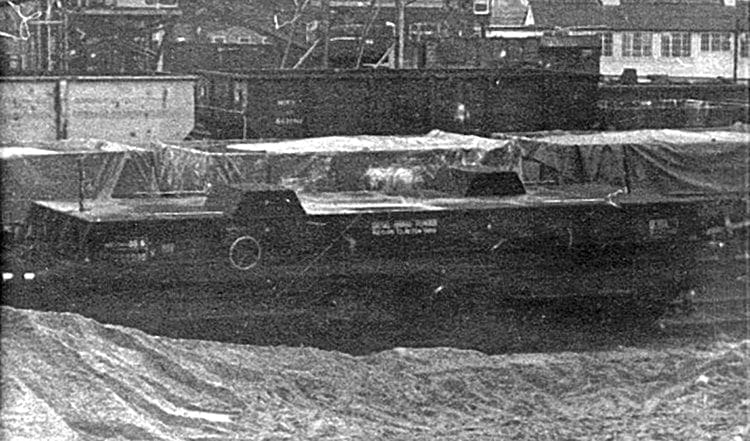

Above and below: Brake tenders basically featured three main body types; most had smooth rounded superstructure, but the six Stratford-built examples were far more angular, as illustrated in the picture of one being propelled through March by D6723 in 1968 (right). The third type is seen in the form of B964035 (above), the first of the three prototypes built at Cowlairs and originally numbered DE320848. The second Cowlairs tender, DE320922 (later B964036) was noted at Dunfermline in 1961 with rounded bodywork, so it seems clear that the later two prototypes were of improved design and that the production fleet (with the exception of the Stratford vehicles) was based on them. Main picture: JOHN VAUGHAN

Although it had been possible to acquire components such as brake cylinders from donor vehicles, a large number of metal parts – including the body panels and supporting roof hoops – had to be fabricated from scratch and much of this work was carried out by the group’s Phil Stanbridge.

At first, Phil, who works for TAS Engineering in Burton, did the work in his own time after the end of his shift, but the owner of the firm, Gareth Davies, noticed a build-up of unusual offcuts under his workbench one day and questioned him as to what was going on. Phil feared the worst but was amazed by the response: “We can’t have this! It will take too long… I will allocate some resources to help you.”

The employer even allowed an expensive and newly acquired lathe machine to be tested out on brake tender work free of charge.

“How many of us would like a boss like that?” said Brian. “Without his generosity and understanding, the project would be nowhere near finished yet and would have cost a heck of a lot more.”

Another lucky break concerned the all-important ballast weights required for the tender’s successful operation. BR’s original vehicles mainly contained scrap iron or poured concrete as ballast, but a conversation with Nick Tinsley, of the GCR’s permanent way team, revealed the existence of a pile of unwanted concrete sleepers in Quorn yard.

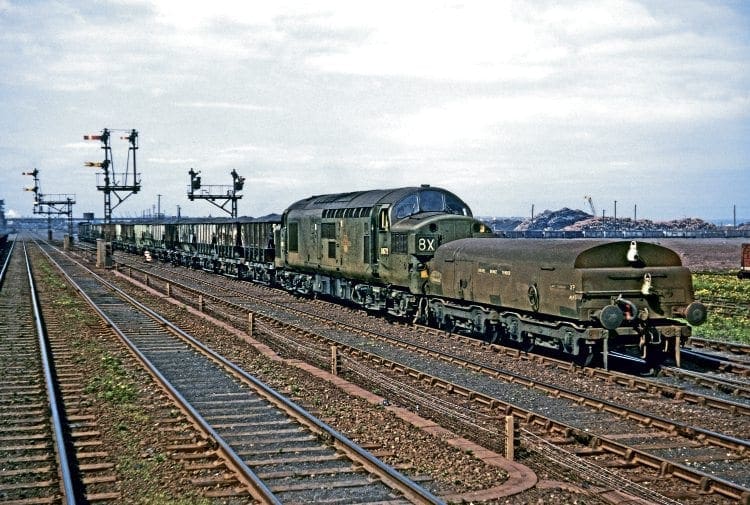

Push… English Electric Type 3 No. D6772 and a Gresley-bogied tender at West Hartlepool on May 15, 1965. At the beginning of the 1970s, the propelling of DBTs was banned by BR, partly because such trains were restricted to 45mph and partly to reduce the risk of drivers misjudging the length of their traction unit and causing SPADs by slightly over-running signals or points. RAIL PHOTOPRINTS

Fitted with bullhead chairs, they were non-standard and it was thus agreed that 48 of them could be moved to Rothley – but the volunteer signalman at Quorn thought they were being stolen and phoned Loughborough headquarters to inform the general manager, who duly made contact to double-check what was going on. “It was a bit embarrassing but at least the signalman took the precaution of informing someone of an activity he thought suspicious,” said Brian.

The sleepers were duly fork-lifted onto the frames of the DBT and have proved ideal for their new purpose. Some have been placed lengthwise inside the vehicle and others have been cut to size to fit side-to-side.

All have been carefully strapped down and bolted to ensure there is no shifting of the load should the tender be involved in a heavy shunt or some other incident.

The amount of ballast used had to be accurately calculated as it was necessary to bring the vehicle’s springs down to their correct riding height to ensure that the tender’s buffers line up with those of the locomotives it will be paired with in traffic.

The total weight when up and running will be 35.5 tons – the same as the majority of the originals.

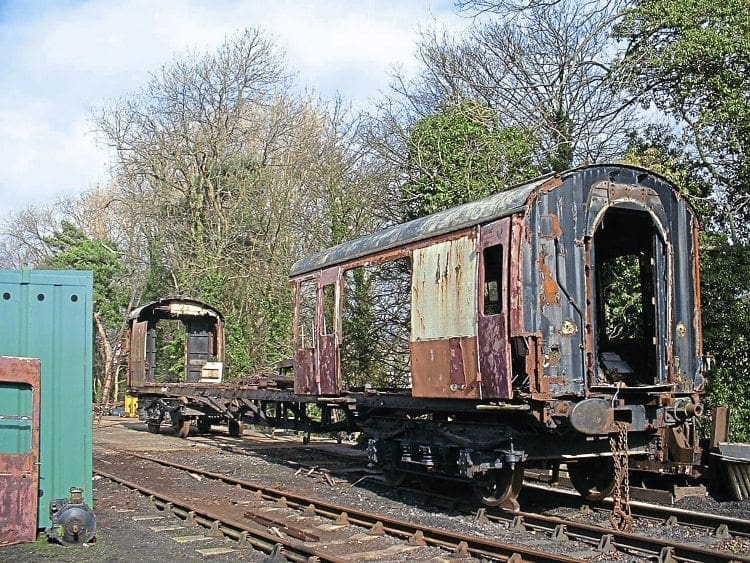

Above and below: The ex-British Rail Mk1 coach that gave birth to the 21st century brake tender. SK No. 15208 is seen in the Great Central Railway’s Rothley yard during the dismantling process in 2012 and after the ‘cut-and-shut’ job. Both: BRIAN HALLETT

The cost of building the vehicle has been largely met by the group members themselves, aided by a small number of donations. “We all chipped in to raise the initial £1,000 required to purchase the Mk1 coach and since then it’s been a case of emptying our wallets whenever anything needed buying,” explained Brian.

“We launched a ‘tenner for a tender’ donation scheme, which is still open, but need to raise money to finish the job and get the vehicle painted into BR green livery, so any help from RM readers would be greatly appreciated.”

It is planned to launch the tender into traffic at the GCR’s September gala, although engine drivers will need to be trained to handle the extra weight, length and braking power as the tender will officially be considered part of whatever locomotive it is coupled to.

Parts of the railway’s rulebook will thus need to be re-written and a number of test runs and driver-training sessions will be necessary, so the group is appealing for ex-BR men with experience of DBTs to come forward with offers of assistance and advice.

After the launch, No. B964122 is likely to be in great demand for photographers’ charters and RVP would also be happy to listen to offers from any other heritage railways wishing to operate this unique vehicle on their own metals.

RVP chairman Tim Pryce said: “The omission of this type of vehicle from the nation’s heritage collection is one that many people have commented on and I look forward to seeing it in use, demonstrating how problems with new technology – which diesel locos were in the 1950s and 60s – were overcome. They provided a solution to a problem that continued until unbraked trains were eliminated.”

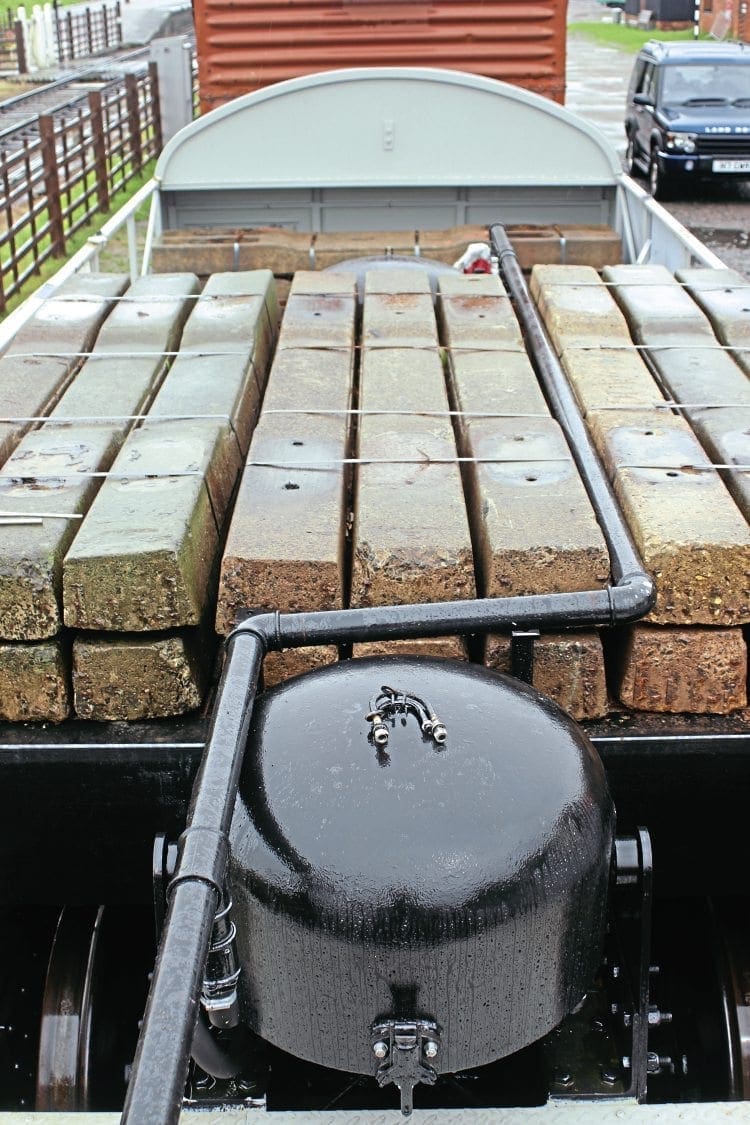

Above: A view from the top showing how the concrete sleepers have been fitted in to provide the required ballast weight. In the foreground is one of the brake cylinders, with the other just visible at the far end. NICK PIGOTT

What does the group plan to do as a follow-up? “Well, it’s been joked that we could resurrect another lost aspect of British railway history by building a Class 13 ‘master-and-slave’ shunter, so if two Class 08s go missing and a hump appears in Swithland yard, you’ll know what’s happening,” laughed Brian.  ■

■ Brake tender donations can be made to: RVP Ltd, 26 Cliff Park Avenue, Wakefield WF1 2DW. (Please write ‘Project X’ on the back of cheques) or text RVPL10 £10 to 70070. Ex-BR drivers are invited to contact Brian Hallett on [email protected] or tel 01778 346728.

DIESEL BRAKE TENDERS – A BRIEF HISTORY

THE transition from steam to diesel on British Railways caused major changes, one of which concerned the safe control of heavy unfitted goods trains. Whereas a steam locomotive was able to use its driving wheels and tender wheels for braking, the new forms of traction could rely only on a limited number of small diameter wheelsets.

Following a spate of problems with Bo-Bo and even 1-Co-Co-1 diesels, three prototype brake tenders were built by Glasgow’s Cowlairs Works in 1960/61. Numbered DE320848 and DE320922/23, the 35½-ton vehicles proved so successful in trials that BR decided to place orders for a fleet of a further 119 for deployment across the national network.

Two other BR works (York and Stratford) and four private wagon-building companies – Standard, Central, Marcroft and Derbyshire – were contracted to produce the fleet, and all but 10 of the vehicles were outshopped in 1962/63, the remainder following in 1964.

Their low body height enabled them to be pushed as well as pulled by locomotives, although maximum permitted speed was reduced from 60mph to 45mph when being propelled. Fitted with twin vacuum brake cylinders, they not only improved braking power on totally unfitted trains but also increased the braking efficiency of a train with a ‘fitted head’ (one containing a portion of braked wagons).

‘Battleship’

Construction costs were kept to a minimum by the use of redundant coaching stock bogies, frames and brake gear, with only the steel platework being new. In most cases this was of a smooth-curved design, resulting from re-use of former carriage roof supports, but the 10 DBTs built by Stratford were larger versions of the first Cowlairs prototype in having a square-edged, rivetted appearance more akin to a First World War battleship.

At 37.5 tons, the Stratford products were two tons heavier than their classmates. The number range for the fleet was B964000 to B964121, with the three Scottish ones being renumbered into that series to make a grand total of 122.

Details of the various diagram builders can be seen in the accompanying table, with Diagram 1/555 being the most common at 78 vehicles, most of which ran on ex-LNER Gresley bogies. The two Diagram 557 vehicles had BR bogies and most of the remainder possessed ex-LMS versions.

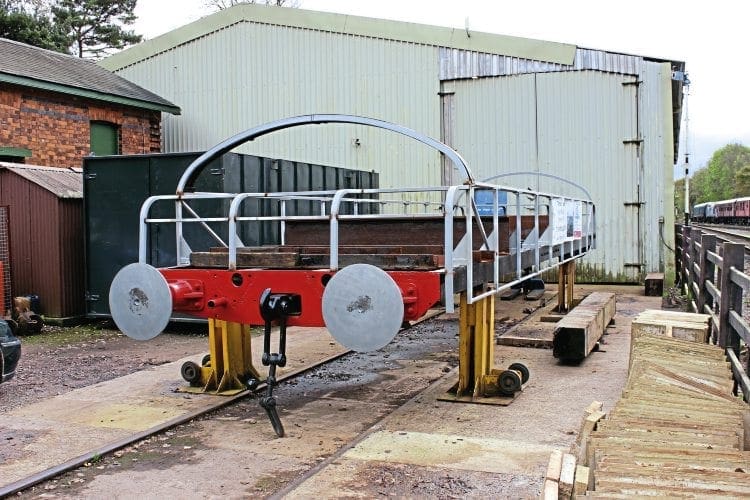

Once the shortened frame had been lifted from its bogies, it was placed on stands outside Rothley carriage shed to enable the body-supporting framework to be fitted. Note the large Oleo buffers, with which most, if not all, the original DBTs were fitted.

The tenders were widely used on all Regions of BR, especially on mineral trains in the Midland and Northern coalfields, and it was not uncommon to see a loco working with two, one pushed and the other pulled.

Electro-diesels worked with them on the Southern Region, usually on coal trains or
cross-London freights, and it was not unknown for tenders to be paired with AC electrics and even steam locomotives, although the latter were extremely rare.

DBTs were technically classed as wagons, but were always counted as part of a locomotive when in use and would be completely under the control of the driver/secondman, not the guard.

Most were fitted with handbrake wheels on both sides and for the purposes of load computation, each vehicle was regarded as equal in weight to three and a half of BR’s standard wagon units and equal in length to one and a half standard wagon units. Under no circumstances were brake tenders permitted to be loose-shunted.

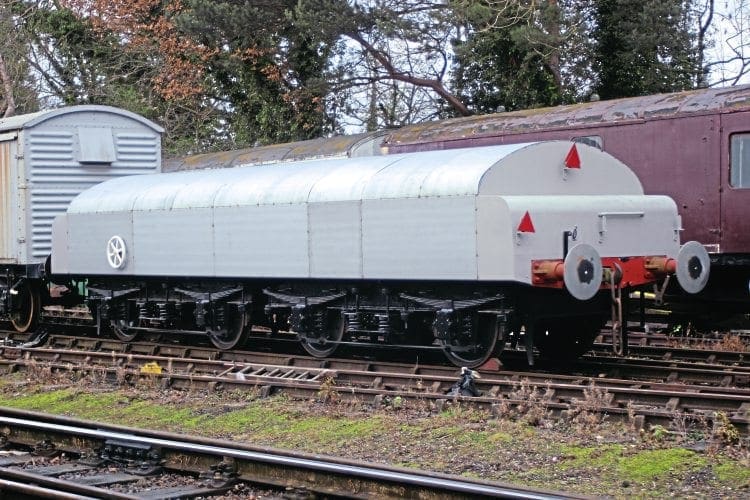

Almost ready to run: In December 2016, the final body panel was fitted to Rail Vehicle Preservation Ltd’s brake tender at the Great Central Railway’s Rothley depot. It will be painted in BR green early this year in readiness for launch at the GCR’s September gala. BRIAN HALLETT

The benefits of the fleet far outweighed the disadvantages, but among the latter was the fact that their deadweight reduced the payload of a train while increasing its length. Special operating procedures had to be introduced, which complicated traffic control, and as freight trains generally became faster, the propelling of brake tenders was abolished by BR from 1970 onwards.

That decision also removed a risk from the network, as there had been a few incidences of drivers misjudging the length of the tenders when stopping at signals.

Declined

Although tenders continued to be hauled after that, their numbers rapidly declined as automatic brakes became more widespread on BR and it is understood that their use on service trains
ceased in mid-1973.

Several did, however, see regular use on Western Region civil engineers trains in the middle-to-late 1970s and no fewer than three were noted coupled behind Class 37 locos Nos. 37222/238 on a train of rail sections passing Newport, South Wales, in March 1979.

In June of that year, two were pictured in the Eastern Region’s Temple Mills marshalling yard.
A dozen or so were transferred into departmental stock (renumbered into the DE3209XX series) and survived into the early-1980s. By that time, most had received BR blue livery in place of the original green.

By 1980, the survivors were concentrated in the Acton and Taunton areas and at least two of those – the former B964017 and B964050 – were noted awaiting the cutter’s torch in Woodham’s Barry scrapyard in mid-1981.
