Asset Monitoring: Looking after the rail infrastructure

by

Many RM readers will have seen the yellow Network Rail trains around the country, but what do they do and why are they operated? Andrew Royle, who was a technician on the trains, explains their crucial role.

The yellow-liveried test trains of Network Rail, or ‘Infrastructure Monitoring’ (IM) trains to use the correct description, feature regularly in the Operations section of The Railway Magazine.

Article continues below…
Advert

Enjoy more Railway reading in the monthly magazine.
Click here to subscribe & save.

Their varied motive power and unusual operating schedules certainly make them an attractive target for photographers.

But the work they actually carry out is perhaps not so well understood.

The equipment fitted to each of them varies so there is a degree of overlap between what certain train sets can achieve, but I will attempt to summarise the current situation.

Article continues below…
Advert

Over the years, the remit of IM trains has extended from one of simply checking the alignment of the track to a range of processes to assess the wider railway.

Track geometry (or alignment) was originally checked and maintained by lengthmen, using gauge sticks, spirit levels and a skilled eye, but the ever-increasing speed and axle loading of trains in general required a more accurate and reliable method.

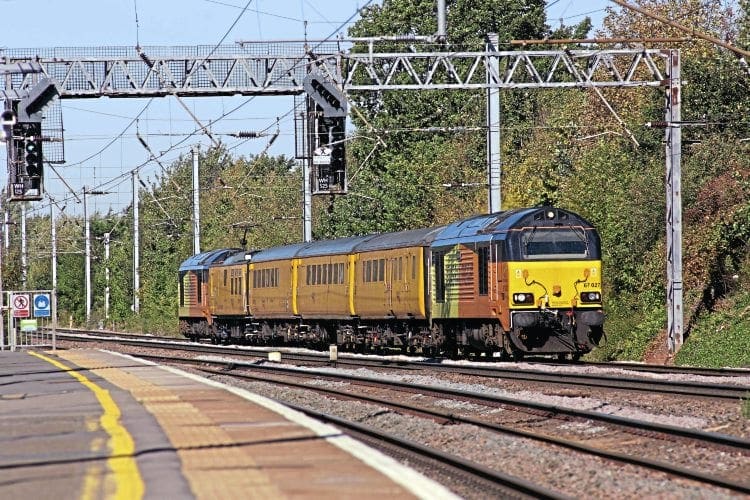

Colas Class 67 Nos. 67027 Charlotte and 67023 Stella working test train 1Q52 08.15 Burton Wetmore Sidings-St Pancras International past Flitwick on September 27, 2018, covering the Bedford slow lines leg of the Midland Main line. This was a maintenance week for the NMT, and the opportunity for dynamic OHL monitoring has been taken by including Mentor (975091) in this rake. ALL PICTURES BY AUTHOR UNLESS STATED

Early track recording coaches used mechanical displacement measuring equipment, and dropped paint onto the track to indicate any misalignments for correction by the lengthmen.

Article continues below…
Advert

However, their principal advantage was the fact they were carrying out measurements dynamically (i.e. with the weight of a train on the track).

With their equipment properly calibrated, they also had the benefit of consistency – errors of judgement by any less experienced lengthman were eliminated.

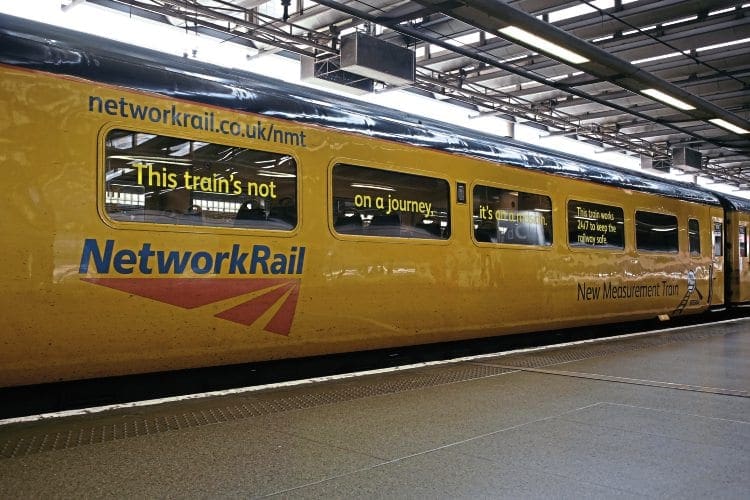

In recent years, the IM fleet has assumed a more assertive profile, with titles and graphics applied to the exterior of many vehicles. The NMT carries the message ‘This train’s not on a journey, it’s on a mission. This train works 24/7 to keep the railway safe’. Number 975984 is shown at St Pancras International on May 16.

This is still true, though the extra safety benefit today, whether trains are running or not, is that it obviates the need to send people out onto the track.

Article continues below…
Advert

The principal track geometry issues that are looked for are wide gauge, track twist and cyclic ‘top’, as these are the features most likely to lead to a derailment.

Overall though, well-aligned track also serves to improve passenger comfort and to reduce wear and tear on rolling stock.
